Product Details:
|
| Product Name: | Silicone Coated Fiberglass Fabric | Alkali Content: | Alkali Free |
|---|---|---|---|
| Yaen Type: | E-Glass | Thickness: | 0.2-3.0mm |
| Width: | 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized | Color: | Red,grey,black,green,and Customed Colors |
| Temperature Resistance: | -50°C To +550°C | Keywords: | Silicone Coated Fabric |
| Good Features: | Water And Oil Resistant, Flame Retardant, Chemical Resistant | Application: | Welding Blankets,fire Blankets,fire Doors,fire Curtains |
| High Light: | Single Side Silicone Coated Fiberglass Fabric,Welding Blanket Silicone Coated Fiberglass Fabric,510g Silicone Coated Fiberglass Fabric |
||
510g Single Side Silicone Coated Fiberglass Fabric For Welding Blanket
1. Description:
Filament fiberglass fabric with silicone coating on one or both sides is a high performance, versatile composite material made from asbestos-free fiberglass filament yarns. The fiberglass cloth has excellent water resistance, chemical resistance, oil resistance, high temperature resistance, excellent weather aging resistance, high strength, good wear resistance and durability. It is an ideal choice for fire doors, fire curtains, welded fire blankets, insulation covers, expansion joints, non-metal compensators, and anti-corrosion departments.
2. Technique Data Sheet
|
Items |
Technical Requirement |
|
Width |
1200±10mm |
| Basic Cloth Thickness | 0.43±0.05 mm |
| Cloth Weight | 430±15g/m2 |
| Silicone Coating Weight | 80±10g/m2 |
| Warp and Weft Density | 39*38/in |
| Temperature Resistance | 550oC |
3. Much More Related Products
| Product Type | Thickness (mm) | Weight (g/m2) | Weaving |
| E3732-LG1 | 0.4mm | 510 | Twill |
| E3732-LG2 | 0.45mm | 590 | Twill |
| E666-LG1 | 0.6mm | 750 | Stain |
| E666-LG1 | 0.7mm | 850 | Satin |
| E3784-LG1 | 0.8mm | 950 | Satin |
| E3784-LG2 | 0.9mm | 1050 | Satin |
| E3732-LG1 | 0.4mm | 510 | Twill |
| E3732-LG2 | 0.45mm | 590 | Twill |
| E666-LG1 | 0.6mm | 750 | Stain |
| E666-LG1 | 0.7mm | 850 | Satin |
| E3784-LG1 | 0.8mm | 950 | Satin |
| E3784-LG2 | 0.9mm | 1050 | Satin |
4. Silicone Coating Cloth Features
STRONGER TENSILE STRENGTH
BETTER ABRASION RESISTANCE
BETTER AGING RESISTANCE
HIGH CHEMICAL RESISTANCE
HIGH OIL RESISTANCE
HIGH FIRE RESISTANCE: CAN WITHSTAND TEMPERATURES UP TO 500 F°
5. Application
fire doors, fire curtains, welding blankets, fire blankets, boat building, oil and gas industry, chemical and energy industry, thermal insulation fabric, heat-resistance fabric, fireproof cloth, thermal insulation fabric, heat-resistance fabric, fireproof cloth.

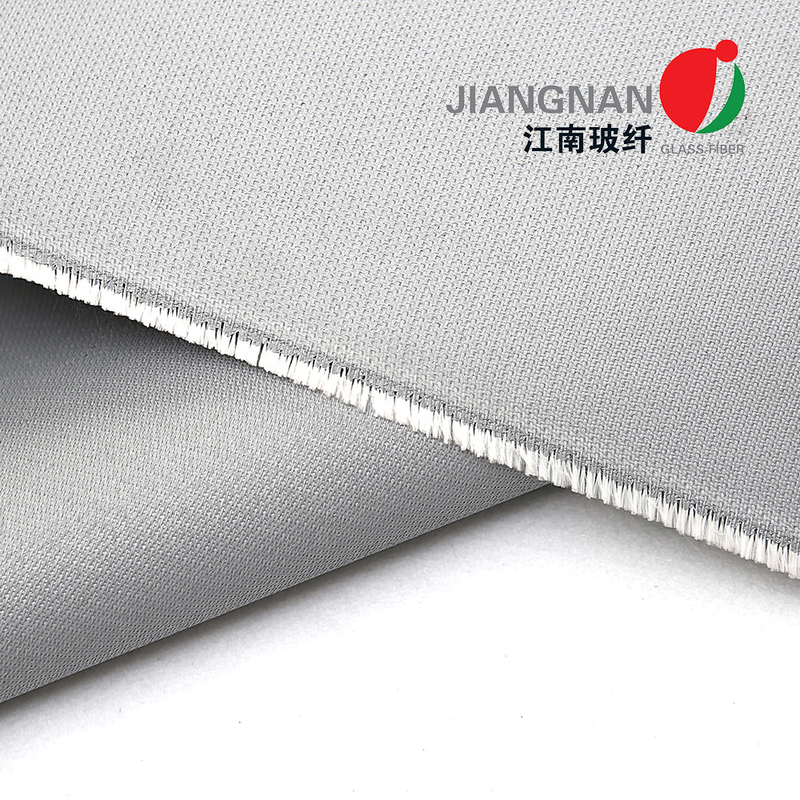

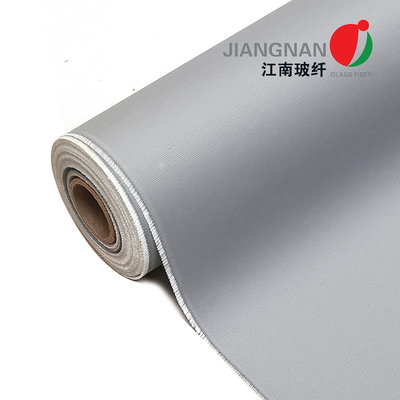

6. More Images for Coated Fiberglass Cloth
7. Our Production Line
