Product Details:
|
Product Name: | Silicone Rubber Impregnated Fiberglass | Surface Treatment: | Silicone Rubber Coating |
---|---|---|---|
Weight: | 1740GSM | Width: | 1000mm |
Thickness: | 1mm | Material: | 100% Fiberglass |
Temperature Resistance: | -70-260C | Color: | Black, Red |
High Light: | Silicone Impregnated Fiberglass Fabric,1mm Silicone Coated Fiberglass Fabric,Satin Weave Fiberglass Fabric |

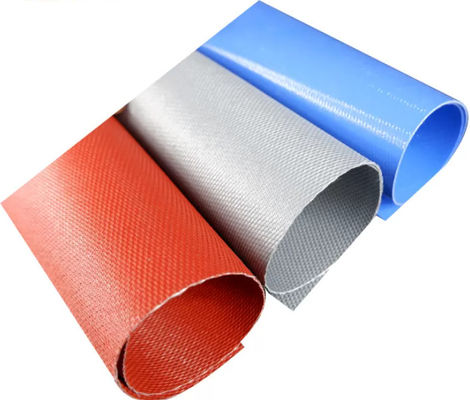

1MM Heavy Coated Silicone Rubber Impregnated Fiberglass Thermal Fabric Cloth
1. Descriptions
Silicone impregnated glass fiber fabric is highly flexible and provides an excellent protective fabric for insulation blankets and other heat-resistant components. The silicone coating increases water and oil resistance, and has low smoke and flame resistance. Although the base fiberglass fabric has a rated temperature of 1000°F / 550°C, the silicone coating has a rated continuous temperature of 550°F / 287°C. Silicone coated glass fiber fabric has good flexibility, puncture resistance and tear resistance. The dry surface of this fabric will not stick to the sewing table, so it is easier to sew, drape and handle.
2. Silicone-coated Fiberglass Cloth Product Data Sheet
Base Fiber | E-glass |
Weave | Satin Weave |
Weight: |
17 oz/sq |
Thickness | 0.0155'' |
Color and Coating | Silver silicone Rubber |
WarpTensile Strength | 250lbs/in |
Weft Tensile Strength |
200lbs/in |
Burst Strength | 400PSI MIN |
Flame Resistance | 550F |
Available Width | 60'' |
3. Application
Work in the oil medium of low and high temperature,with good sealing perfomance,which is widely apply to produce seals in the electronic,pharmacy and chemical industry.
4. Features
5. Factors of Scoring In Quality Control
