Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g

Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g
Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g

Large Image :  Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g

Product Details:
Place of Origin: Jiangsu-China
Brand Name: Changshu Jiangnan Glass Fiber
Certification: ISO 9001 2015
Model Number: Silicone Coated Fiberglass Fabric
Payment & Shipping Terms:
Minimum Order Quantity: Quantity: 500 Square Meters or Negotiation
Price: Negotiation
Packaging Details: Each Roll in a Carton Box, 20 Cartons/Pallet
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 square meters per day

Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g

Description
Product Name: Silicone Coated Fiberglass Cloth Weave: Plain
Coating: 2 Sides Yarn Density: G75 1/0,G75 1/0
Weight: 200g/m2+80g/m2 Silicone Coating Color: Gray
Good Feature: No Thermal Shrinkage Phenomenon Application: Sealing Material
High Light:

Plain Silicone Coating Fiberglass Fabric

,

Joint Silicone Coating Fiberglass Fabric

,

Heat Resistant Coated Fiberglass Cloth

Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g


1. Description:



The silicone-impregnated glass fiber fabric is highly flexible and can provide an excellent protective fabric for insulating blankets and other heat-resistant components. The silicone coating increases water and oil resistance and low smoke and flame retardancy. Although the base glass fiber fabric is rated at 1000°F/550°C, the silicone coating is rated at 550°F/287°C. Silicone coated glass fiber fabric has good flexibility, puncture resistance, and tear resistance. The dry surface of this fabric will not stick to the sewing table, making it easier to sew, drape and handle.

Jiangnan glass fiber products are made of silica and alumina to form alkali-free glass fibers. This makes them extremely resistant to high operating temperatures, mechanical resistance, chemical stability, water resistance to oil and water, and electrical and thermal insulation. These high-temperature and heat-resistant fabrics are made of fibers with a diameter of 6 or 9 microns, which provide our products with great flexibility, vibration resistance, and abrasion resistance. This type of fiberglass fabric is economical, chemically resistant, strong, and can withstand reasonable temperatures during use.



Type: E-glass

Coating: 40/40g on each side

Structure: silicone+glass fiber+silicone

Weight:280g/m2

Flammability: ≤25%

Thickness: 0.45mm

Weave: Plain



2. Technique Data Sheet



7628 Silicone Coating Fiberglass Cloth
Item Model 7628 Fiberglass Fabric
Description Electronic Fiberglass Fabric
Weave Structure Plain Weave
Weight 200gsm
Thickness 0.2mm
Silicone Coating Weight 80g/m2
Yarn Type Warp EC9 68 1*0
Weft EC9 68 1*0
Thread Count Warp 18 ends/cm
Weft 12 picks/cm
Break Strength Warp 438 N/cm
Weft 350 N/cm
LOI < 4%
Working Temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Color Black, Grey, Red
Fire Resistance Non-Flame



3. Much More Related Products



Product Type Thickness (mm) Weight (g/m2) Weaving
E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin



E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin

3. Silicone Coating Cloth Features



Applicable in gaskets, safety curtains, and conveyor belts, our offered cloth is known for the below features:

Good chemical resistance
Excellent release properties
Temperature range from -70C to +260ºC
High Intensity



4. Application



The common applications are removable insulation jackets, flange spray shields, welding curtains and blankets, expansion joints, high-temperature gaskets, and seals

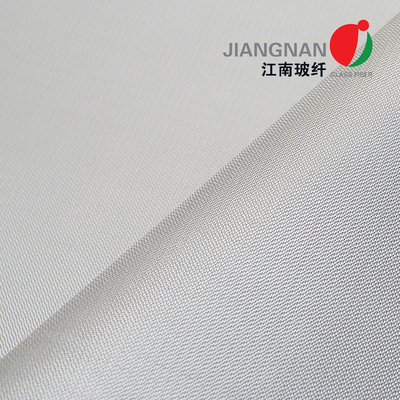

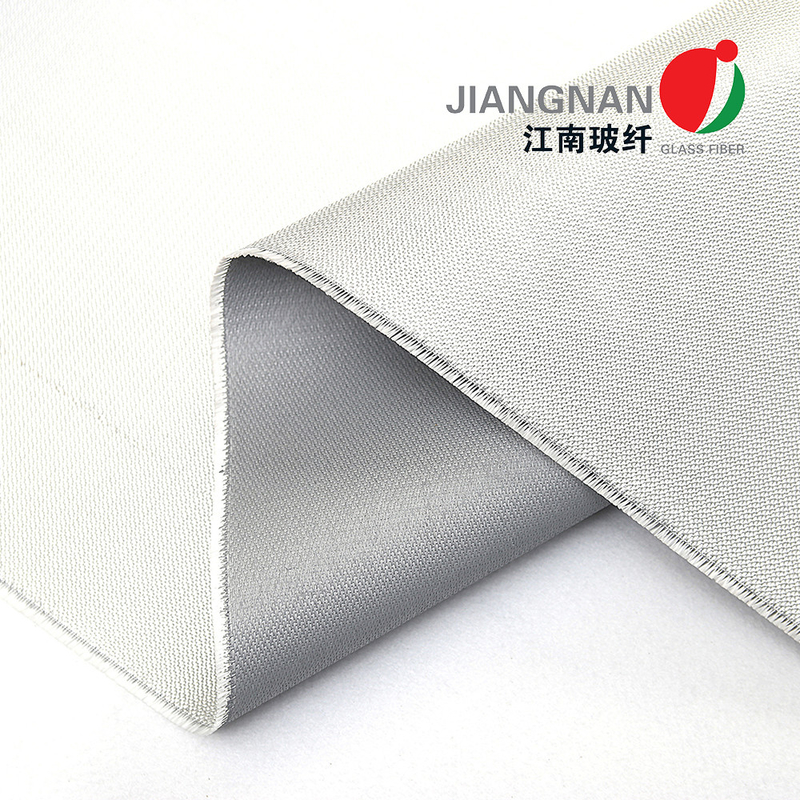

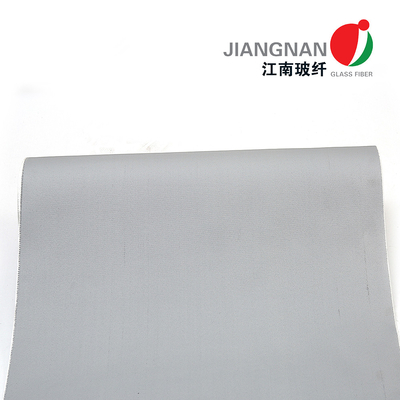

5. More Images for Coated Fiberglass Cloth



Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g 0Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g 1









6. Our Production Line


Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g 2


Plain Weave Silicone Coating Fiberglass Fabric For Joint 280g 2








E3732-LG1
