High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width

High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width
High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width

Large Image :  High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width

Product Details:
Place of Origin: Jiangsu-China
Brand Name: Changshu Jiangnan Glass Fiber
Certification: ISO 9001 2015
Model Number: Silicone Coated Fiberglass Fabric
Payment & Shipping Terms:
Minimum Order Quantity: Quantity: 500 Square Meters or Negotiation
Price: Negotiation
Packaging Details: Each Roll in a Carton Box, 20 Cartons/Pallet
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 square meters per day

High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width

Description
Product Name: Silicone Coated Fiberglass Cloth Weave: Plain
Coating: 2 Sides Thickness: 0.45mm
Tensile Strength: 2000/1600 N/50mm Color: Gray
Good Feature: No Thermal Shrinkage Phenomenon Application: Sealing Material
High Light:

High Intensity Coated Fiberglass Fabric

,

1.55m Width Coated Fiberglass Fabric

,

Silicone Coated Fiberglass Fabric 17oz

High-Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width


1. Description:



What is silicone coating fiberglass cloth?

silicone coated fiberglass cloth is made with high-temperature resistance, non-toxic fireproof silicone rubber, and heat/flame resistant thermal insulating fiberglass cloth. Jiangnan silicone-coated fiberglass cloth has good resistance to extreme temperatures, with operating temp ranging from -70°C to +260°C.



The silicone coating has strong resistance to chemical corrosion and is not affected by mild non-oxidizing acids, most salts, minerals and lubricants, air, humidity, and sunlight. All the above coating qualities enable the fabric to be used in a wide range of industrial applications, such as gaskets, fire curtains; shrink tunnels; conveyor belts; electrical insulation tapes; foam manufacturing



As an ideal construction engineering material, fiberglass cloth is mainly used to reinforce cement, roofing, wall materials, stone, etc. Lianfeng can produce any size width and weight per square meter according to customer requirements. The quality of our products is recognized by SGS and TUV, and we are the winner of IMO rules.



Type: E-glass

Coating: 40/40g on each side

Structure: silicone+glass fiber+silicone

Weight:17oz/yd2

Flammability: ≤25%

Thickness: 0.45mm

Weave: Plain



2. Technique Data Sheet



3732 Silicone Coating Fiberglass Cloth
Item Model 3732 Silicone Coating Cloth
Description E-glass Industrial Fabric
Weave Structure 1/3 Twill Weave
Cloth Weight 430gsm
Silicone Coating Weight 160g/m2
Thickness 0.43mm
Yarn Type Warp EC9 68 1*2
Weft EC9 68 1*2
Thread Count Warp 18±1 ends/cm
Weft 12±1 picks/cm
Break Strength Warp 700N/cm
Weft 600N/cm
LOI < 5%
Working Temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Color Black, Grey, Red
Fire Resistance Non-Flame



3. Much More Related Products



Product Type Thickness (mm) Weight (g/m2) Weaving
E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin



E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin



4. Silicone Coating Cloth Features



Excellent release performance, high strength, and tear resistance

High dielectric strength

High wear resistance and bending resistance

The operating temperature range can be from -70℃ to +260℃

Non-toxic, odorless, and tasteless

Chemical resistant

Oil and water-resistant



5. Application



Reinforced Material

Fabric Expansion joints

Removable insulation jacket

Foam manufacturing

Sealing material

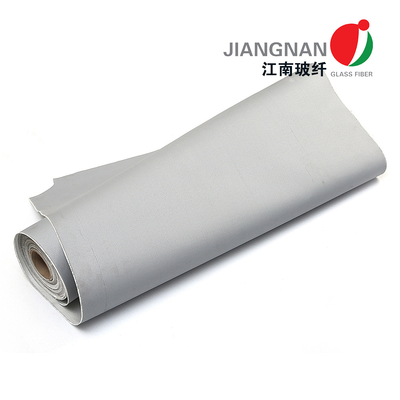

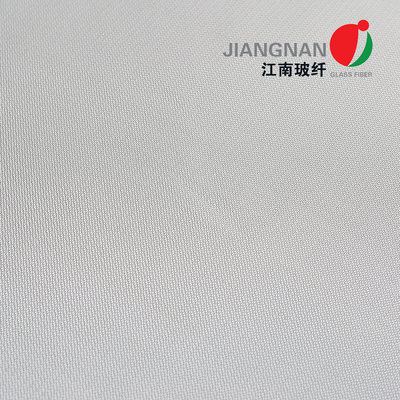

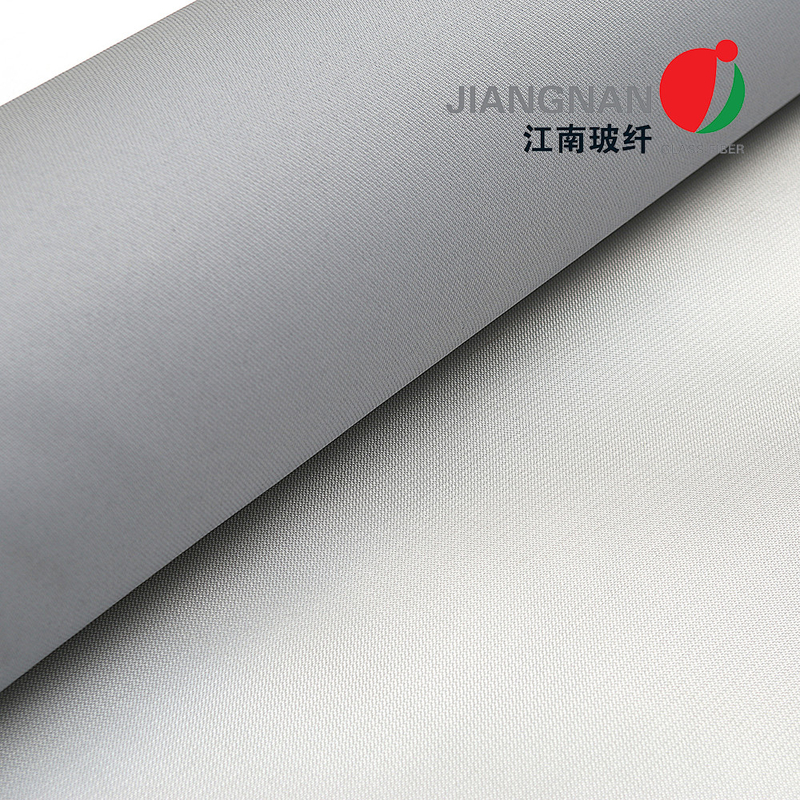

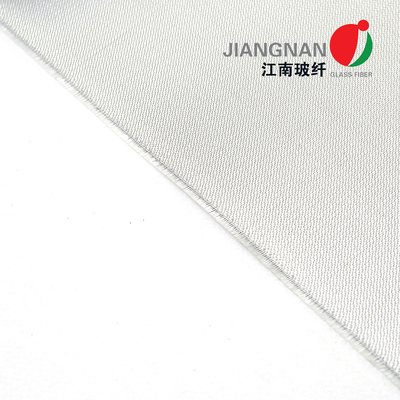

6. More Images for Coated Fiberglass Cloth



High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width 0High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width 1









7. Our Production Line


High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width 2


High Intensity Gray Silicone Coated Fiberglass Fabric 17oz 1.55m Width 2








E3732-LG1
