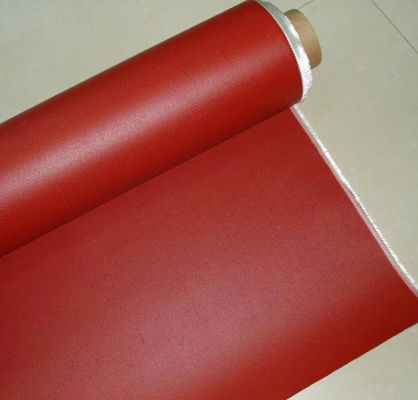

5MM Impregnated Silicone Coated Fiberglass Fabric

5MM Impregnated Silicone Coated Fiberglass Fabric
5MM Impregnated Silicone Coated Fiberglass Fabric

Large Image :  5MM Impregnated Silicone Coated Fiberglass Fabric

Product Details:
Place of Origin: China
Brand Name: Changshu
Certification: ISO9001:2008
Model Number: 1.0mm Heavy Coated Silicone Rubber Impreganated Fiberglass
Payment & Shipping Terms:
Minimum Order Quantity: 500 Meters
Price: Negotiable
Packaging Details: Carton Box,Woven Bag
Delivery Time: 14 Days after the Payment
Payment Terms: L/C, D/A, D/P, T/T, wESTERN uNION
Supply Ability: 10000 Square Meters per day

5MM Impregnated Silicone Coated Fiberglass Fabric

Product Name: Silicone Rubber Impregnated Fiberglass Surface Treatment: Silicone Rubber Coating
Weight: 1740GSM Width: 1000mm
Thickness: 1mm Material: 100% Fiberglass
Temperature Resistance: -70-260C Color: Black, Red
High Light:

Impregnated Silicone Coated Fiberglass Fabric


5MM Silicone Coated Fiberglass Fabric


1000mm Silicone Coated Fiberglass Fabric

1MM 3MM 5MM Heavy Coated Silicone Rubber Impregnated Fiberglass Thermal Fabric Cloth



1.  Descriptions


Silicone coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber.


2. Physical and chemical index of fiberglass fabric coated with silicone rubber


Item Silicone Rubber Impregnated Fiberglass Cloth
High Temperature Resistance (°C) <280
Low Temperature Resistance (°C) >-40
Tensile Intensity (N/50mm) 1750/1280
Inflating burst intensity (Mpa) >2.0
Peeling Intensity (N/m) >450
Insulation (kv/mm) 16
Weight (g/m2) 550-650
Width (mm) 1000
Thickness (mm) 1.0-1.1
Color Black, Grey, and Red


3. Application


Work in the oil medium of low and high temperature,with good sealing perfomance,which is widely apply to produce seals in the electronic,pharmacy and chemical industry.

5MM Impregnated Silicone Coated Fiberglass Fabric 0


4. Features


  • Good performance on resisting high temperature and low temperature, -70-280C
  • High Strength
  • Ozone, oxide, light and weather aging resistance
  • High insulation, dielectric constant: 3-3.2, breakdown voltage: 20050KV/MM
  • Chemical corrosion resistant, oil-proofing, waterprooding

5. Factors of Scoring In Quality Control


  • Fabric Quality
  1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
  2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
  3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
  4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.
  • Packaging :
  1. Jiangnan oven Fiberglass Cloth is wound into a roll on a cardboard inner tube with an inside diameter of 10cm (4"). Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed horizontally on a pallet, which is stretch wrapped.
  • High Quality:
  1. The fiberglass yarns is supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,
  • Low Price:
  1. Our material factory locates next to a power station,so we produce the glass fiber with low electricity and low water cost.
