Product Details:
|
| Features: | Heat Insulation, Good Hermetic And Weather Resistance | Product Name: | Aluminum Foil Fiberglass Composite Fabric |
|---|---|---|---|
| Width: | 1,1.2,1.5 Meters | Coating: | Aluminum |
| Key Words: | Aluminum Glass Fiber Fabric | Aluminum Thickness: | 18 Micron |
| Application: | Heat-retardant Curtains,screens,insulation Pads | Alkali Content: | Alkali Free |
| High Light: | 0.4mm Aluminum Foil Fiberglass Fabric,18 Micron Aluminum Foil Fiberglass Fabric,Fireproof Aluminum Foil Fiberglass Fabric |
||
0.4mm Thickness Econimic Fiberglass Cloth Aluminum Foil Coated With 18 Micron For Fireproof
1. Description:
Jiangnan adopts advanced composite processing, alkali-free glass fiber as the base fabric, and special refractory adhesive. The most popular use is glass fiber filament fabric laminated with aluminum foil with a water-based adhesive, and textured glass fiber fabric with acrylic adhesive laminated with aluminum foil. Water-based adhesives have better flexibility and performance at higher temperatures, but less viscous, while acrylic adhesives have better viscosity and stiffness, especially for bulked glass fiber fabrics with uneven surfaces or need sewing, acrylic adhesive is a better choice.
Temperature resistant:
Aluminum foil coating is best for static applications and working temperatures up to 650°F / 343°C, this fabric will withstand short duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for very short durations. The aluminum coating melts at 1220°F / 660°C.
2. Table 2: Data Sheet of Final Product Al-3732
| AL-3732 | Aluminum Foil | |
| Weaving | 1/3 Twill | 1/3 Twill |
| Basic Fabric Weight | 430g/m2± 5% | 12.72 oz/yd2± 5% |
| Aluminum Thickness mm | 18 Micron | |
| Total Weight | 470g/m2± 5% | 13.9 oz/yd2± 5% |
| Basic Fabric Working Temperature | 550 °C | 1000°F |
| Aluminum Coating Fabric Working Temperature | 180 °C | 356°F |
| Normal Width | 1, 1.2 & 1.5 meters | 40, 48 & 60 Inches |
3. Is Aluminum Foil Cloth a good Refelctor? What is the Aluminum Foil Fiberglass Cloth Application?
4. Product Features:
This kind of material is made of fiberglass fabrics laminated an aluminum foil or film on one side. It has a smooth surface, heat resistant, gas-proof&water-proof and weather resistance.

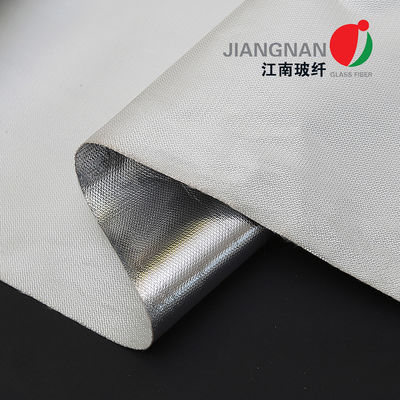

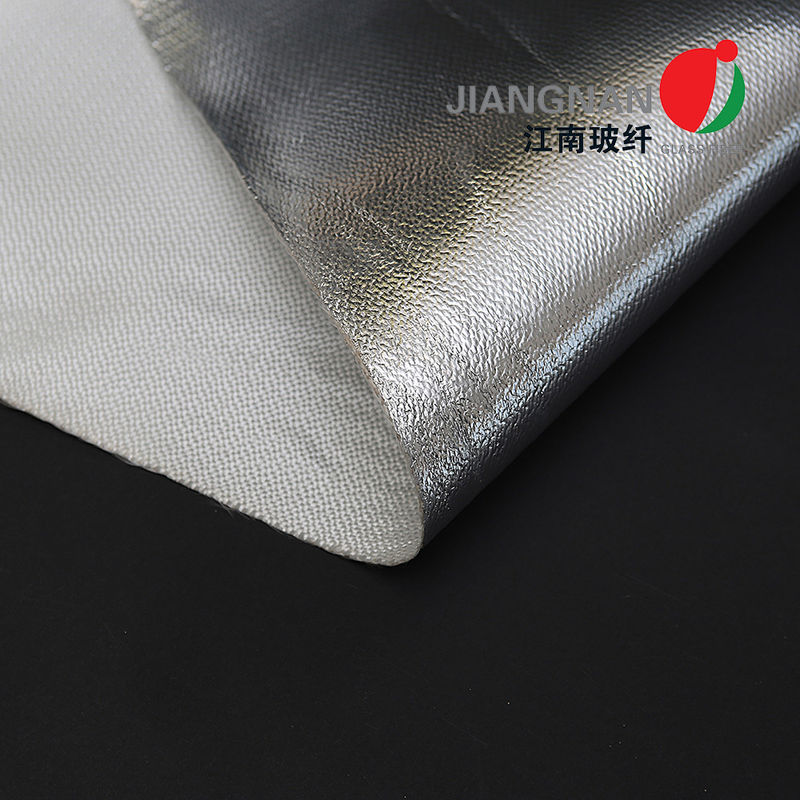

5. Detail images for Aluminum Foil Cloth
6: Other Related Products
| Style No: | Weight | Thickness | ||
| g/m2 | Oz/yd | mm | inch | |
| AL75 | 75 | 2.21 | 0.1 | 0.00 |
| AL7628 | 200 | 5.9 | 0.2 | 0.01 |
| AL3732 | 450 | 13.27 | 0.42 | 0.02 |
| ALFW600 | 600 | 17.7 | 0.6 | 0.02 |
| AL2025 | 600 | 17.7 | 0.6 | 0.02 |
|
Other thickness and weight can also be customized according to your Requirement
75<Weight<2000g
0.1mm<Thickness<3mm |
||||
