Product Details:
|
| Product Name: | Aluminum Foil Coated Fiberglass Fabric | Weave Type: | Plain Weave |
|---|---|---|---|
| Surface Treatment: | Aluminum Foil | Material: | Fiberglass + Adhesive + Aluminum Foil |
| Standing Temperature: | 180 Degree C | Good Features: | Insulation, Good Heat Reflection, Abrasion Proof |
| Usage: | Insulation Cover, Heat Protection Cushions, Motor Vehicle Industry | Color: | Silver |
| High Light: | Heat Protection Laminated Fiberglass Fabric,Piping Laminated Fiberglass Fabric,Abrasion Proof Laminated Fiberglass Fabric |
||
Heat Protection Material Aluminum Foil Coated Fiberglass Fabric For Piping Outside
1. Description:
The Aluminum Foil was used as heat shield on the glass fiber insulation protection layer, the glass fiber is used as the base cloth and the special fire-resistant adhesive to protect personnel or equipment by reflecting radiant heat. Our aluminum foil-coated glass fiber cloth has many excellent properties such as smooth aluminum foil surface, water impermeability, good air tightness and weather resistance, strong light reflection, good vertical and horizontal stretch resistance, and airtightness.
| Product Construction | ||
| Materlal Composition | Material Description | Value Standard |
| Foil | Aluminum |
9 Micron
|
| Adhesive | Pressure Sensitive Oily Adhesive and Water Base Glue |
Adjust according to different thickness of base fabric
|
| Fiberglass Cloth | Each difference Thickness Cloth |
75-2000g
|
2. Table 1: Data Sheet of Basic Fiberglass Cloth
| 7628 Fiberglass Cloth | ||
| Item Model | 7628 Fiberglass Fabric | |
| Description | Electronic Fiberglass Fabric | |
| Weave Structure | Plain Weave | |
| Weight | 200gsm | |
| Thickness | 0.2mm | |
| Yarn Type | Warp | EC9 68 1*0 |
| Weft | EC9 68 1*0 | |
| Thread Count | Warp | 18 ends/cm |
| Weft | 12 picks/cm | |
| Break Strength | Warp | 438 N/cm |
| Weft | 350 N/cm | |
| LOI | < 4% | |
| Working Temperature | ≤550℃ | |
3. Table 2: Data Sheet of Final Product Al-7628
| AL7628 | |||
| Item Model | Aluminum Foil Fiberglass Fabric | Test Standard | |
| Weave Structure | Plain Weave | ||
| Aluminum Foil Thickness | 9μm | ||
| Weight | 210 gsm | ASTM D3776-96 | |
| Thickness | 0.2mm | ASTM D1777-96 | |
| Thread Count | Warp | 18±1 ends/cm | GB/T 7689.2-2013 |
| Weft | 12±1 picks/cm | ||
| Break Strength | Warp | 438 N/cm | GB/T 7689.5-2013 |
| Weft | 350 N/cm | ||
| Color | Silver | ||
| Working Temperature | ≤300℃ | ||
| Flame Resistance | Non-Combustible | ||
| Advantages | Radiant Thermal Reflective | ||
4. What is the Aluminum Foil Fiberglass Cloth Application?
1. Heat insulation materials' heat sealing cover
2. Heat insulation and water vapor barrier requirements of warm and cool water pipe and heat insulation requirement of building.
Notice: The glue of aluminum foil fiberglass cloth is organic. If the temperature exceeds 180 degrees, the glue will volatilize, and the aluminum foil and cloth will separate.
5. Product Features:
1. Corrosion resistance is greatly increased
2. water vapor permeability smaller, strengthen the water vapor barrier effect

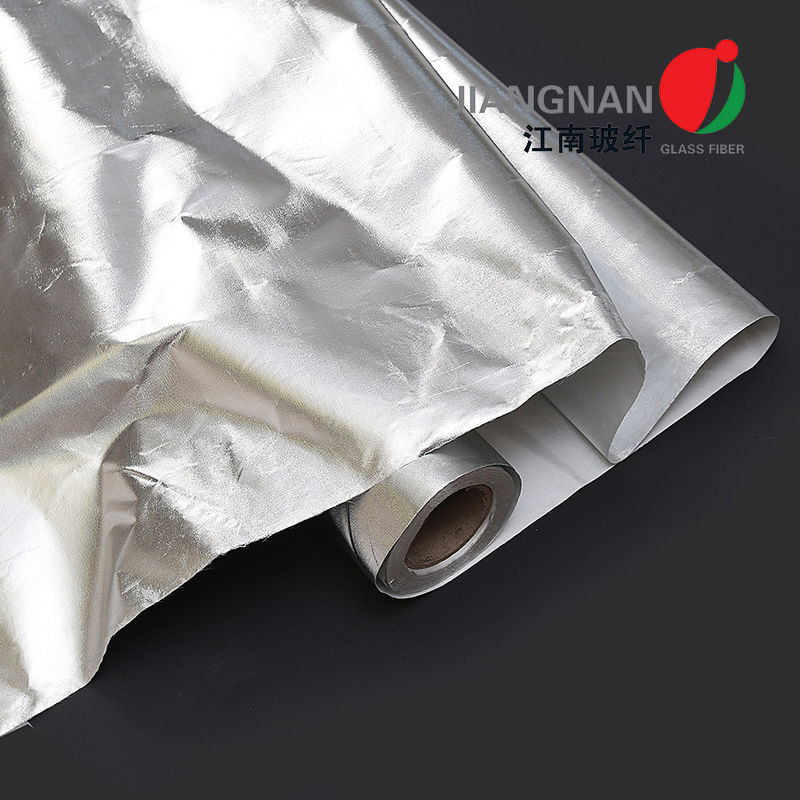

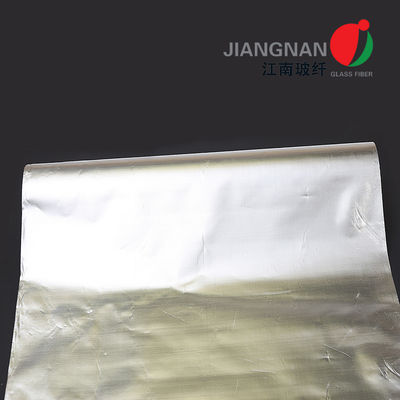

6. Detail images for Aluminum Foil Cloth
7: Other Related Products
| Item no. | Weave | Density per cm | Weight g/m2 | Thickness | Aluminum Foil Thickness | Tensile Strength |
| N/5cm | ||||||
| Warp & Weft | Warp & Weft | |||||
|
AL75
|
Plain | 12*8 | 75 | 0.1mm | 7Micron | 380*370 |
|
AL7628
|
Plain | 18*12 | 200g/m2 | 0.2mm | 7Micron | 2025*1620 |
|
AL3732
|
3x1 Twill | 18*12 | 430g/m2 | 0.43mm | 7/18Micron | 6000*4500 |
|
ALFW600
|
Double Plain | 15*15 | 600g/m2 | 0.55mm | 7/18Micron | 6000*5000 |
|
AL2025
|
Plain | 8*5.7 | 610g/m2 | 0.75mm | 7/18Micron | 2025*1216 |
|
AL-M30
|
Plain | 6*3.8 | 1020g/m2 | 1.2mm | 7/18Micron | 3000*2200 |
|
AL-3784
|
Satin | 18*13 | 880g/m2 | 0.9mm | 7/18Micron | 8000*6000 |
|
Other thickness and weight can also be customized according to your Requirement
|
||||||
