Product Details:
|
Product Name: | Aluminum Foil Laminated Fiberglass Fabric | Weight: | 600g/m2 |
---|---|---|---|
Thickness: | 0.6mm | Weave Type: | Plain Weave |
Coating: | Aluminum Foil/metalize Film | Good Feature: | Flame Resistance |
Temperature Resistance: | 300ºC | ||
Highlight: | Insulation Aluminum Foil Fiberglass Fabric,Fire Resistant Aluminized Fiberglass Fabric,Plain Weave Aluminized Fiberglass Fabric |

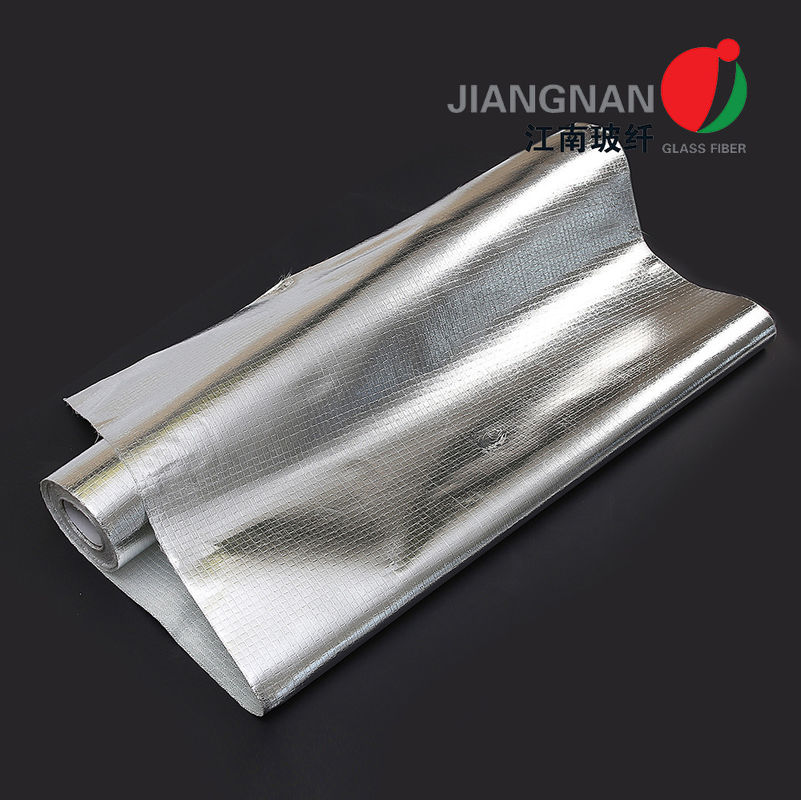

ALFW600 High Performance Insulation Aluminum Foil Laminated Fiberglass Fabric
1. Description:
The heat-reflective aluminum foil glass fiber cloth is using unique advanced composite processing technology, glass fiber as the base fabric and special fire-resistant adhesive, the product has excellent properties such as smooth aluminum foil surface, strong light reflection, good vertical and horizontal stretch resistance, and is air-tight and air-tight. , Watertight, good air tightness and weather resistance.
Product Construction | ||
Materlal Composition | Material Description | Value Standard |
Foil | Aluminum |
9&18 Micron
|
Adhesive | Pressure Sensitive Oily Adhesive and Water Base Glue |
Adjust according to different thickness of base fabric
|
Fiberglass Cloth | Each difference Thickness Cloth |
75-2000g
|
2. Table 2: Data Sheet of AluminumFiberglass Cloth
AL-FW600 | ||||
Item Model | Aluminum Foil Fiberglass Fabric | Test Standard | ||
Weave Structure | Even grain check | |||
Thread Count | Warp | 15 per cm | 38 per inch | GB/T 7689.2-2013 |
Weft | 15 per cm | 38 per inch | ||
Final Product Weight | 600 g/ m2 | 17.6 OZ/YD2 | ASTM D3776-96 | |
Thickness | 0.55 mm | 0.022 inch | ASTM D1777-96 | |
Coating | Aluminum foil/Metalized film + PET | |||
Coating Thickness | 9micron/18micron | 0.28/0.7/0.98mil | ||
Color | Silver | |||
Break Strength | Warp | 6000 N/5cm | 666 lbs/inch | GB/T 7689.5-2013 |
Weft | 5000 N/5cm | 555 lbs/inch | ||
Width | 100cm | 40 inch | ||
120cm | 48 inch | |||
150cm | 60 inch | |||
SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ | |||
Flame Resistance | Non-Combustible Cloth | |||
Advantages | Radiant Thermal Reflective |
3. What is the Aluminum Foil Fiberglass Cloth Application?
The cloth is mainly used for thermal insulation materials of steam heating pipes, building sound insulation materials and super glass wool protective layer with excellent functions of fire prevention, corrosion protection, heat insulation, and sound absorption. It can also be used as packaging materials for export equipment.
4. Product Features:
5. Detail images for Aluminum Foil Cloth
6: Other Related Products
Item no. | Weave | Density per cm | Weight g/m2 | Thickness | Aluminum Foil Thickness | Tensile Strength |
N/5cm | ||||||
Warp & Weft | Warp & Weft | |||||
AL75
|
Plain | 12*8 | 75 | 0.1mm | 7Micron | 380*370 |
AL7628
|
Plain | 18*12 | 200g/m2 | 0.2mm | 7Micron | 2025*1620 |
AL3732
|
3x1 Twill | 18*12 | 430g/m2 | 0.43mm | 7/18Micron | 6000*4500 |
ALFW600
|
Double Plain | 15*15 | 600g/m2 | 0.55mm | 7/18Micron | 6000*5000 |
AL2025
|
Plain | 8*5.7 | 610g/m2 | 0.75mm | 7/18Micron | 2025*1216 |
AL-M30
|
Plain | 6*3.8 | 1020g/m2 | 1.2mm | 7/18Micron | 3000*2200 |
AL-3784
|
Satin | 18*13 | 880g/m2 | 0.9mm | 7/18Micron | 8000*6000 |
Other thickness and weight can also be customized according to your Requirement
|
||||||
