MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding

MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding
MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding

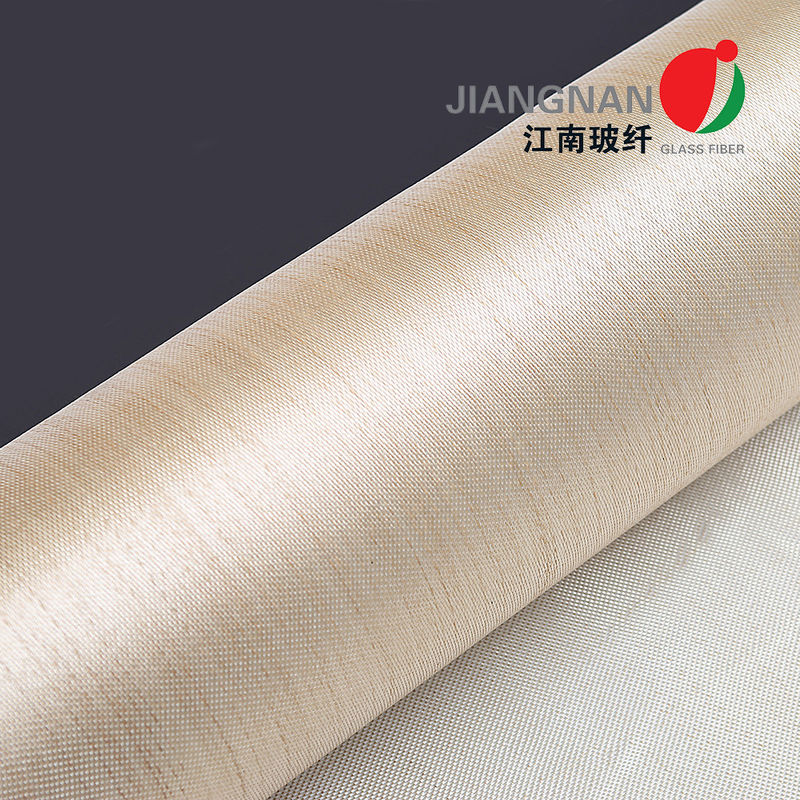

Large Image :  MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding

Product Details:
Place of Origin: Jiangsu-China
Brand Name: Jiangnan
Certification: ISO9001:2015
Model Number: HT800
Payment & Shipping Terms:
Minimum Order Quantity: 500 Meters
Price: Negotiable
Packaging Details: 50m one roll in Carton Box
Delivery Time: 14 Days after the Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Square Meters per day

MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding

Description
Product Name: Satin Weave Heat Treated Fibre Glass Fabric Thickness: 0.8mm
Weave Type: Satin Weave Material: 100% Fiberglass
Surface Treatment: Heat Treated Application: Welding Blankets
Standing Temperature: 550 Degree Alkali Content: Medium
Good Features: Corrosion Resistance,Heat Resistant,high Tempeture Certification: MSDS,ISO9001
High Light:

MSDS Heat Treated Fiberglass Fabric

,

Tight Weaving Fiberglass Fabric

,

Civil Welding Fireproof Fiberglass Fabric

0.8mm HT800 Industrial High-Temperature Fibre Glass Fabric Sheets Satin Weave



1. Description:



HT 800 Welding Blanket(Fire Blanket) is produced by Veton. Welding blankets are surface-treated fiberglass fabrics with heat resistance, high thickness, and tight weaving, suitable for isolation and prevention in industrial and civil welding operations. The thickness of heat-treated fiberglass cloth is 0.2mm to 1.6mm thickness, high-temperature resistance is up to 550℃. According to the size of the operation area, it can hang the blanket like a curtain to isolate the welding area, you can also spread the blanket on the floor.



2. Datasheet for Heat Treated Fiberglass Cloth



Style HT800
Structure 8HS Satin
Yarn Warp CC9 33 4*2
  weft CC9 300Tex
Thickness 1mm
Color Gold/White
Density 18*12/cm
Thread Count Ends/cm Warp 18
  Weft 12

Tensile Strength

N/5cm

Warp 6800
  Weft 5600
Width/cm 100, 120, 150, 180, 200
Length/m 50
Weight 840±30gsm



3. Features:



  • Weatherproof
  • Fire Resistance
  • Thermal Insulation
  • Non-flammable
  • High-Temperature Resistance
  • Easy Fabrication
  • Soft Cloth



4. Main Applications



It is used as a Welding blanket and insulation lining to protect sensitive machinery, HT800 is effective against moderate to heavy welding sparks. Its light and heat-treated satin weave pattern result in thicker, heavier, and stronger fabric far more resistant to heat impact from welding sparks as compared to other thinner, texturized cloths.

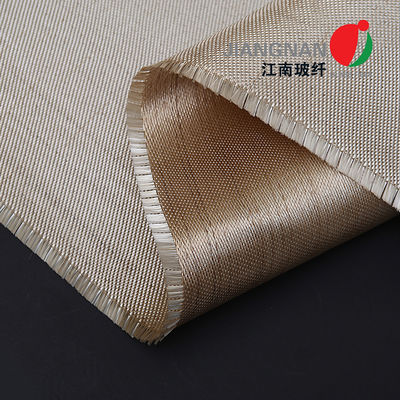

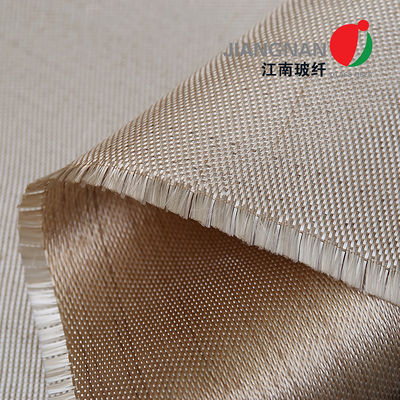

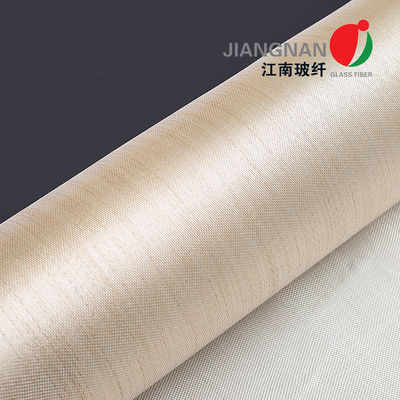

5. Detail Product Images



MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding 0



6. Packaging Detail Images



MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding 1

MSDS Heat Treated Fiberglass Fabric Tight Weaving For Civil Welding 2



7. Much More Related Products



Cloth Type Style Thickness Weight
Woven Fiberglass Fabric HT3732 0.4mm 430gsm
HT800 0.8mm 830gsn
HT3788 1.6mm

1650gsm

Texturized Fiberglass Fabric HT2025 0.7mm 580gsm
HTM30 1.2mm 1200gsm
Reinforced Fiberglass Fabric HT 666 Reinforced with Wire 0.6mm 650gsm
