Anti Corrosion Twill Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials

Certification
China Changshu Jiangnan Glass Fiber Co., Ltd. certification
China Changshu Jiangnan Glass Fiber Co., Ltd. certification
Customer Reviews
They are truly trusted partners. They have nice price with satisfying quality. They are professional in high temperature textiles and can give me better advice for my project

—— Michael

We have cooperated with Jiangnan for fire blankets for more than 10 years, and they always keep the quality stable. They took our every request seriously. All in all it was a pleasure working with them.

—— UTC

I'm Online Chat Now

Anti Corrosion Twill Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials

Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials
Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials

Large Image :  Anti Corrosion Twill Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials

Product Details:
Place of Origin: CHINA
Brand Name: Jiangnan
Certification: ISO 9001 2015
Model Number: 3732 Double-side Silicone Coated Fiberglass Fabric
Payment & Shipping Terms:
Minimum Order Quantity: Quantity: 500 Square Meters or Negotiation
Price: Negotiation
Packaging Details: Each Roll in a Carton Box, 20 Cartons/Pallet
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 square meters per day

Anti Corrosion Twill Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials

Description
Product Name: Fireproof Silicon Coated Fiberglass Fabric And Cloth Weave: Twill
Coating: 1 Sided Coating Silicone Fiberglass Fabric Working Temperature: -70-260Degree
Tensile Strength: 2000/1600 N/50mm Yarn Type: E-Glass
Good Feature: No Thermal Shrinkage Phenomenon Application: Fire Prevention
High Light:

Anti Corrosion Fiberglass Fabric

,

Twill Waterproof Glass Fabric Cloth

,

Insulation Materials Silicone Coated Glass Fabric

Anti Corrosion Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials


1. Description:



What is silicone coating fiberglass cloth?



Silicone-coated fiberglass cloth is based on fiberglass cloth and produced by coating or calendering. It is made of high temperature resistant, corrosion-resistant, high strength glass fiber cloth, and through the organic silicone rubber calendering or impregnating. It is a new type of composite material with high performance and multiple applications. It is made of a fiberglass base fabric and coated on 1 or 2 sides with a specially compounded iron oxide red silicone rubber or manganese iron black silicone. They have excellent electrical insulation, thermal insulation, and chemical resistance. The silicone coating is durable and wear-resistant to withstand high-temperature heat. It extends service life while providing higher oil and water resistance and electrical insulation than uncoated fabrics.



Type: E-glass

Coating: 130g on each side

Structure: silicone+glass fiber

Weight:17oz/yd2

Flammability: ≤25%

Thickness: 0.45mm

Weave: Plain

LifeTime: 10 Years under normal environment

Dielectric Constant: 3-3.2

Breakdown Voltage: 20-50 KV/MW



2. Technique Data Sheet



3732 Silicone Coating Fiberglass Cloth
Item Model 3732 Silicone Coating Cloth
Description E-glass Industrial Fabric
Weave Structure 1/3 Twill Weave
Cloth Weight 430gsm
Silicone Coating Weight 160g/m2
Thickness 0.43mm
Yarn Type Warp EC9 68 1*2
Weft EC9 68 1*2
Thread Count Warp 18±1 ends/cm
Weft 12±1 picks/cm
Break Strength Warp 700N/cm
Weft 600N/cm
LOI < 5%
Working Temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Color Black, Grey, Red
Fire Resistance Non-Flame



3. Much More Related Products



How to choose Knife Coating Silicone Coating fiberglass fabric?



Knife Coating Silicone Coating Differences between Premier and Industrial Quality
    Premier Quality Industrial Quality
1 Loomstate High-speed Rapier Weaving Machine Normal Dornier (small weaving defects might occur occasionally)
2 Silicone Wet, High-Quality Silicone Rubber Dry, Standard Silicone Rubber
3 Appearance Shiny and Tacky Dull but Smooth
4 Performance Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances
5 Application Mostly for Removable Insulation Jackets Mostly for Welding, But Also for Economic Removable Insulation Jackets



Premier Quality Thickness (mm) Weight (g/m2) Weaving
E7628-LG1 0.2mm 230 Plain
E7628-LG2 0.23mm 280 Plain
E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin
Other Thickness and Weight can be Customized



Industrial Quality Thickness (mm) Weight (g/m2) Weaving
E7628-SG1 0.2mm 230 Plain
E7628-SG2 0.23mm 280 Plain
E3732-SG1 0.4mm 510 Twill
E3732-SG2 0.45mm 590 Twill
E666-SG1 0.6mm 750 Stain
E666-SG1 0.7mm 850 Satin
E3784-SG1 0.8mm 950 Satin
E3784-SG2 0.9mm 1050 Satin
Other Thickness and Weight can be Customized



4. Silicone Coating Cloth Features



Weather ability: resistance to ozone, oxygen, sunlight, and aging, long using life up to 10 years

Good electric insulator

Temperature resistance, it can continuously work under -70℃ to 280℃

Fire prevention-Fiberglass fabrics have flame retardant properties

The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time.



5. Application



Industry Conveyor belt and flexible hoses, expansion joints.

Serve as welding blankets, foundry splash protection, heat protection quilt.

Acoustic insulation of piping works

Electrical insulation, chemical resistant, UV light, abrasion and contamination resistance, packing material.

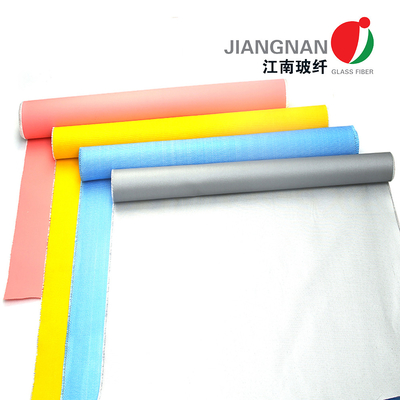

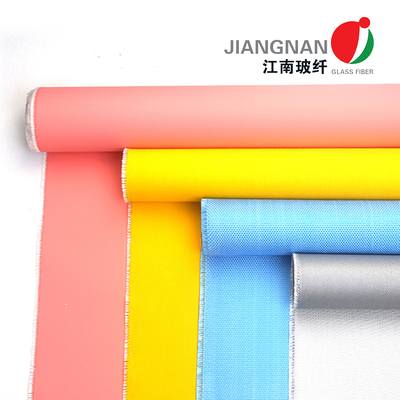

6. More Images for Coated Fiberglass Cloth



Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials 0

Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials 1



7. Our Production Line


Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials 2


Anti Corrosion Twill  Waterproof Fiberglass Fabric Coated With Silicone 260 ℃ Insulation Materials 2
