Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven

Certification
China Changshu Jiangnan Glass Fiber Co., Ltd. certification
China Changshu Jiangnan Glass Fiber Co., Ltd. certification
I'm Online Chat Now

Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven

Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven
Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven

Large Image :  Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven

Product Details:
Place of Origin: CHINA
Brand Name: Jiangnan
Certification: ISO 9001 2015
Model Number: Silicone Coated Glass Cloth Heat Resistant Double Sides
Payment & Shipping Terms:
Minimum Order Quantity: Quantity: 500 Square Meters or Negotiation
Price: Negotiation
Packaging Details: Each Roll in a Carton Box, 20 Cartons/Pallet
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 square meters per day

Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven

Description
Product Name: Silicone Coated Glass Cloth Heat Resistant Double Sides Coating: Silicone Coated Glass Cloth
Working Temperature: -70-260Degree Fabric Finish: Silicone Coated Impregnated
Good Feature: Waterproof Application: Wall/Roof Covering Cloth
Material: Silicone + Fiberglass + Fabric Color: Customized
High Light:

1/3 Twill Woven Silicone Coated Fiberglass

,

Flex Resistance Silicone Coated Glass Fabric

,

Blanket Silicone Fiberglass Fabric

Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven


1. Description:



What is silicone coating fiberglass cloth?

There is a wide range of silicone fiberglass fabric with a weight from 120 to 1400 g/sq.m. with a width up to 2 m with different types of finish improving their properties. One of the considerable sectors of silicone fiberglass fabric application — production of welding blankets, fire protective blankets, screens and curtains, casing as a thermal barrier for protection of the equipment, high-temperature insulation of furnaces, turbines, screens for protection from molten metal splashes, sparks, thermal insulation. The Silicone Series is the most conformable, flexible, trackable, and wear-resistant product line offered. This series is made from woven fiberglass substrates that have been coated on one or both sides with silicone rubber.



Total weight 530 g/m2
Thickness 0.4 mm
Color Black
Fire resistance Yes
Working temperature -500C to +2600C
Coating Silicone Coated On 1 Side.
Standard widths 1000mm, 1270mm, 1550mm,2000mm(MAX)



2. Technique Data Sheet

Style 3732 Silicone Coated Cloth
1 Weave 4 HS Satin
2 Yarn Warp EC9 136 1×2
(tex) Weft EC9 136 1×2
3 Width 101.6 cm
152.4 cm
4 Fabric Thickness 0.4 mm
5 Coating Two Sides – Silicone Rubber (100 g)
6 Coating Thickness 0.1 mm
7 Overall Thickness 0.4 mm
8 Overall Weight 530 g/m2
9 Thread Count Warp 18 per cm
Weft 13 per cm
10 Tensile Strength Min. Warp 8000 N/5cm
Weft 6000 N/5cm
11 Temperature Max. 260oC



3. Much More Related Products



How to choose Knife Coating Silicone Coating fiberglass fabric?



Knife Coating Silicone Coating Differences between Premier and Industrial Quality
    Premier Quality Industrial Quality
1 Loomstate High-speed Rapier Weaving Machine Normal Dornier (small weaving defects might occur occasionally)
2 Silicone Wet, High-Quality Silicone Rubber Dry, Standard Silicone Rubber
3 Appearance Shiny and Tacky Dull but Smooth
4 Performance Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances
5 Application Mostly for Removable Insulation Jackets Mostly for Welding, But Also for Economic Removable Insulation Jackets



Premier Quality Thickness (mm) Weight (g/m2) Weaving
E7628-LG1 0.2mm 230 Plain
E7628-LG2 0.23mm 280 Plain
E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin
Other Thickness and Weight can be Customized



Industrial Quality Thickness (mm) Weight (g/m2) Weaving
E7628-SG1 0.2mm 230 Plain
E7628-SG2 0.23mm 280 Plain
E3732-SG1 0.4mm 510 Twill
E3732-SG2 0.45mm 590 Twill
E666-SG1 0.6mm 750 Stain
E666-SG1 0.7mm 850 Satin
E3784-SG1 0.8mm 950 Satin
E3784-SG2 0.9mm 1050 Satin
Other Thickness and Weight can be Customized



4. Silicone Coating Cloth Features

Excellent release properties up to 500 °F (260 °C)
Good chemical, abrasion and flex resistance
Outstanding dielectric properties
Does not exhibit the low friction surface or self lubricating properties of PTFE coated fabrics



5. Application

The coated fabric is available in a great many exclusive models and different sizes. Moreover, it is modified or customized in harmony with the specifications presented by the clients. The coated belt finds its applications in so many industries due only to its superior performance. For instance, chemical, cement, oil industries, iron, safety curtains, and more.



6. More Images for Coated Fiberglass Cloth

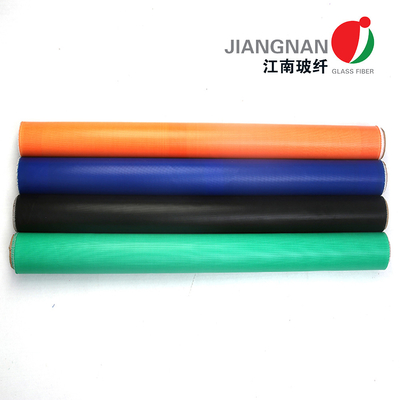

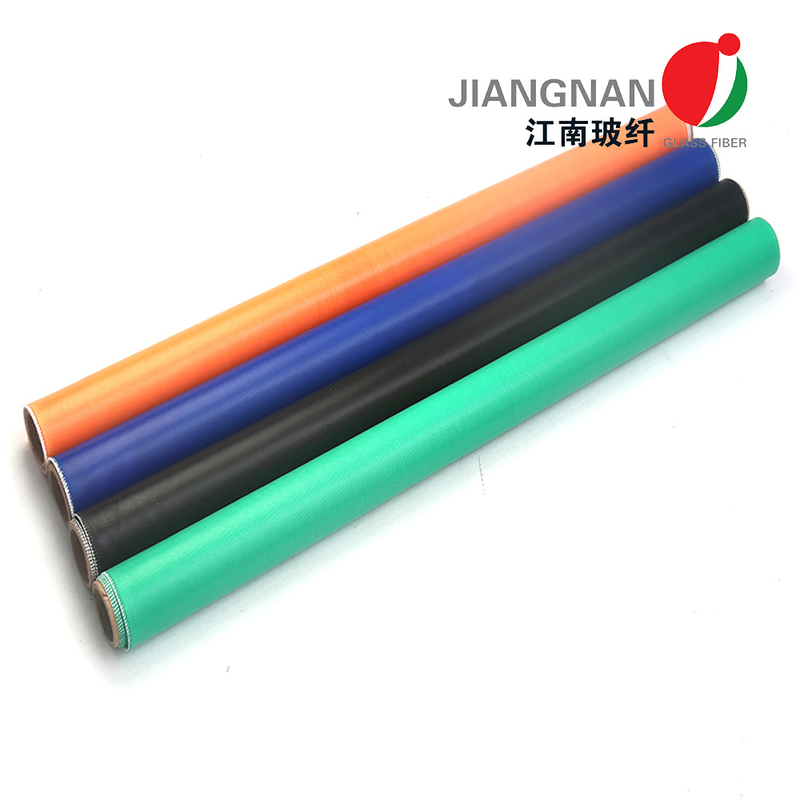

Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven 0



Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven 1



7. Our Production Line


Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven 2


Flex Resistance Blanket Silicone Coated Impregnated Fiberglass 1/3 Twill Woven 2
