Product Details:
|
| Product Name: | Ceramic Fiber Bulk | Working Temperature: | 1260℃ |
|---|---|---|---|
| Color: | White | AL2O3+SIO2: | 99% |
| Thermal Conduction: | 0.11W/M.k | Material: | Aluminum Silicate |
| Feature: | Fire Retardant | Technique: | Piltrusion |
| Grade: | HP High Pure | Application: | Heat Insulation |
| High Light: | vermiculite coated fiberglass cloth,flame retardant fabric |
||

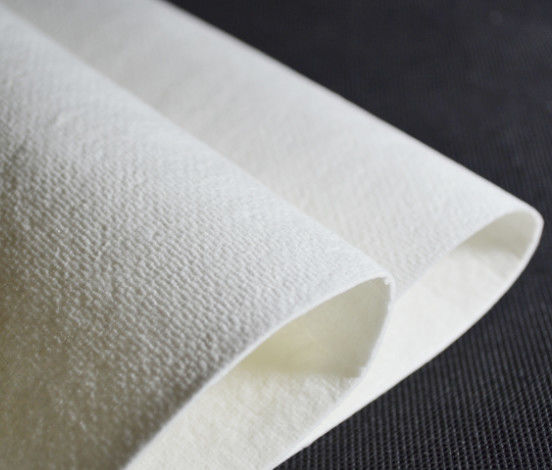

Cotton 1260 High Temperature Fiberglass Cloth Fireproof Ceramic Fiber paper
1.Description: Ceramic fiber paper offers high temperature resistance, very low thermal conductivity, chemical corrosion resistance and thermal shock stability. It provides maximum heat resistance and thermal insulation in limited space.
2.Specifications:
1.Electric and thermal insulation
2.Insulation for instruments/equipment
3.Insulation material for motor industry
4.Thickness: 0.5-6.0mm
5.Width: 610, 1,220mm h) Length: 10-120m
6.High temperature insulating, sealing, protecting material for industry.
7.Electric and thermal insulation for electric industry.
8.Insulation for instrument-equipment.
9.Insulation material for motor industry.
3.Color: white
4. Application: Linings for furnace, kiln and oven, expansion joints and seals for furnace, kiln and oven, Back-up installation, Lagging of high temperature pipework, high temperature filtration, steam turbine and nuclear insulation Fire protection. The paper can be widely used in the applications where purity, cracking resistance and heat resistance are of importance.
| Name | Type | Thickness Range |
| Ceramic Paper |
TXZ-1350 |
1-5mm |
|
0.4-1mm, 5-8mm |
||
|
TXZ-1260 |
1-5mm | |
|
0.4-1mm, 5-8mm |
||
|
TXZ-1400 |
1-5mm | |
|
0.4-1mm, 5-8mm |
TDS
| Name | TXZ-1260 | TXZ-1350 | TXZ-1400 | |
| Weight | 180±20 | 180±20 | 180±20 | |
| Theoretical Temperature Resistance | 1260oC | 1350oC | 1400oC | |
| Long-time Use T | 1000-1100oC | 1100-1200oC | 1200-1250oC | |
| Weight Loss | <=8% | <=8% | <=8% | |
| Al2O3 | >=42 | >=52 | >=49 [Zero>=3] | |
|
Linear Shrinkage (1000oC-24h) |
<=4% | <=4% | <=4% | |
| Al2O3+SiO2 | >=94 | >=94 | ||
|
Thermal conductivity [W/m k]
|
400oC | <=0.1 | <=0.1 | <=0.1 |
| 800oC | <=0.12 | <=0.12 | <=0.12 | |
| 1000oC | <=0.135 | <=0.135 | <=0.135 | |
| Type | Meaning |
| TXZ-1260 |
Moderate soft and hard Good strength Bent Widely application |
| TXZ-1260R |
High Strength Easy Bend |
| TXZ-1260R+ |
Good Softness Used for Warpping No rebound |
| TXZ-1260Y |
High strength Not easy to crack Used for pad |
| TXZ-1260Y+ |
Highest strength No layers Used for punching |
Production Process
